Raspberry Pi 4B skadis mount

Raspberry Pi 4B skadis mount

Boost
54
143
9

Print Profile(1)

All
A1 mini
P1S
P1P
X1
X1 Carbon
X1E
A1

0.2mm layer, 6 walls, 25% infill
0.2mm layer, 6 walls, 25% infill
Designer
4 h
4 plates
4.8(8)

Open in Bambu Studio
Boost
54
143
9
6
59
45
Released

Description

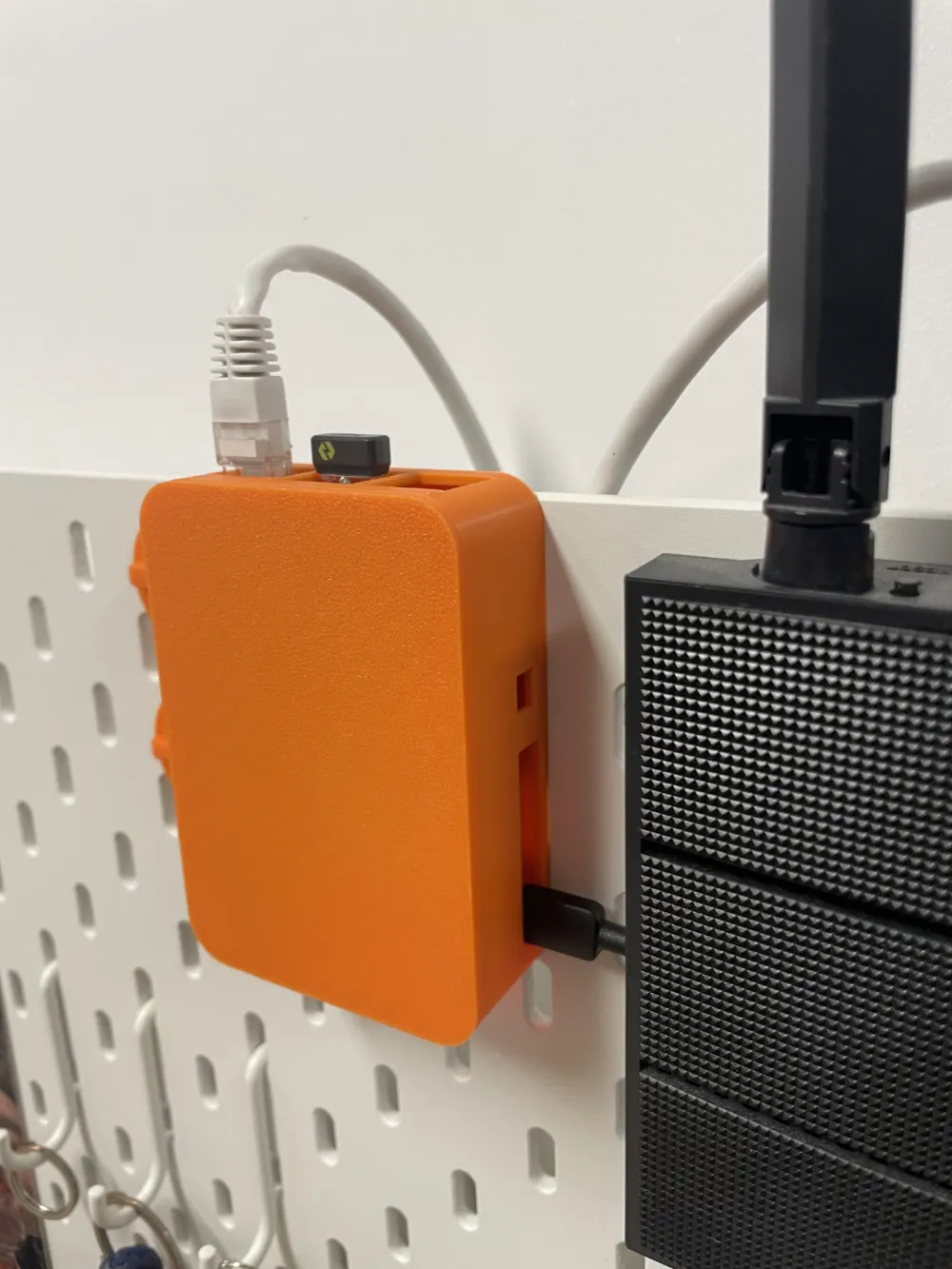

This case allows to attach your Raspberry Pi 4B to the SKADIS board. There's plenty of room inside if you want to install some additional electronics, and if you wish you can easily create a hole in the cover to run some additional wires. The most important ports are accessible.





This model uses T-Clip System by Line Arc Line https://www.printables.com/model/256896-skadis-t-clip-system

Comment & Rating (9)

(0/5000)

Print Profile
0.2mm layer, 6 walls, 25% infill
it’s ok and works. I would make some small adjustments on the cut outs for the power as if you have a thinker power plug it won’t fit as the case blocks the access. Also, not keen on the twist locks to fix to the skadis. I would prefer the mounts to be on the unit. however I understand the reason and it does allow you to offset it from the skadis board which could be useful for some.
1
Reply
Print Profile
0.2mm layer, 6 walls, 25% infill
Super !!!!
