Side Mount Filament Guide by RonRob61

RonRob61

3D Printer>3D Printer Accessories

Print Profile(1)

All

X1 Carbon

P1S

P1P

X1E

A1 mini

0.2mm layer, 6 walls, 25% infill

Designer

1.9 h

1 plate

4.9(29)

Open in Bambu Studio

Boost

128

397

270

173

Released

Description

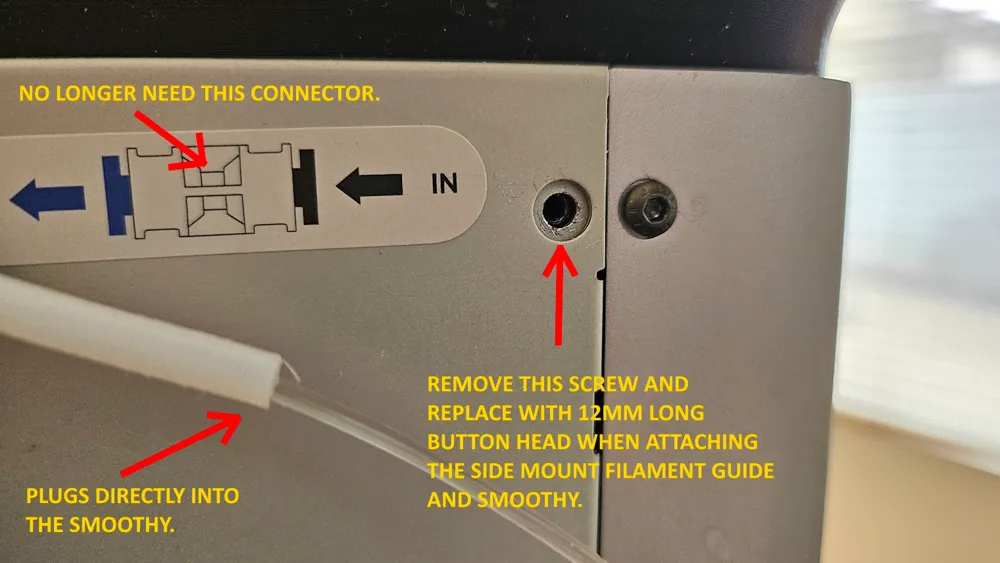

The Side Mount Filament Guide is as simple a guide as I had intended it to be. Under an hour to print, not an eye sore and easy to install. Only one existing screw on the back of the PS1/X1C needs to be removed and replaced with a 12mm version of the same screw to install, (Please see Photos). After testing a few “Y” splitters I determined that the “SMOOTHY” and SMOOTHY HOLSTER" Designed by JDJDJD here on MakerWorld were by far the best and most reliable and designed the side mount filament guide work in conjunction with the “Smoothy”. The print plate includes the Smoothy, Smoothy Holster and the Side Mount Filament Guide. I hope I didn't break any rules here including the Smoothy. This work perfectly along with my previous Upload “HINGED SIDE MOUNT SPOOL HOLDER” found here….. https://makerworld.com/en/models/1036765#profileID-1020734
