Storage Box to fit gridfinity 2x3 3x3 3x4 4x4 by dymek34

dymek34

Tools>Organizers

IP Report

Print Profile(5)

All

P1S

P1P

X1 Carbon

X1E

A1 mini

Inside 4x4 gridfinity, 0.2mm layer, 2 walls, 15% infill

Designer

6.8 h

3 plates

5.0(5)

Inside 2x3 gridfinity, 0.2mm layer, 2 walls, 15% infill

Designer

4.3 h

4 plates

5.0(3)

Inside 4x3 gridfinity, 0.2mm layer, 2 walls, 15% infill

Designer

5.4 h

4 plates

5.0(2)

Inside 3x3 gridfinity, 0.2mm layer, 2 walls, 15% infill

Designer

5.3 h

4 plates

Click to see more

Open in Bambu Studio

Boost

187

534

234

Released

Description

A shelf system for boxes 4x4 and 3x4.

https://makerworld.com/en/models/1094107#profileId-1088179

New height, 75mm inside.

Link to 75mm high boxes:

https://makerworld.com/en/models/1090544#profileId-1083945

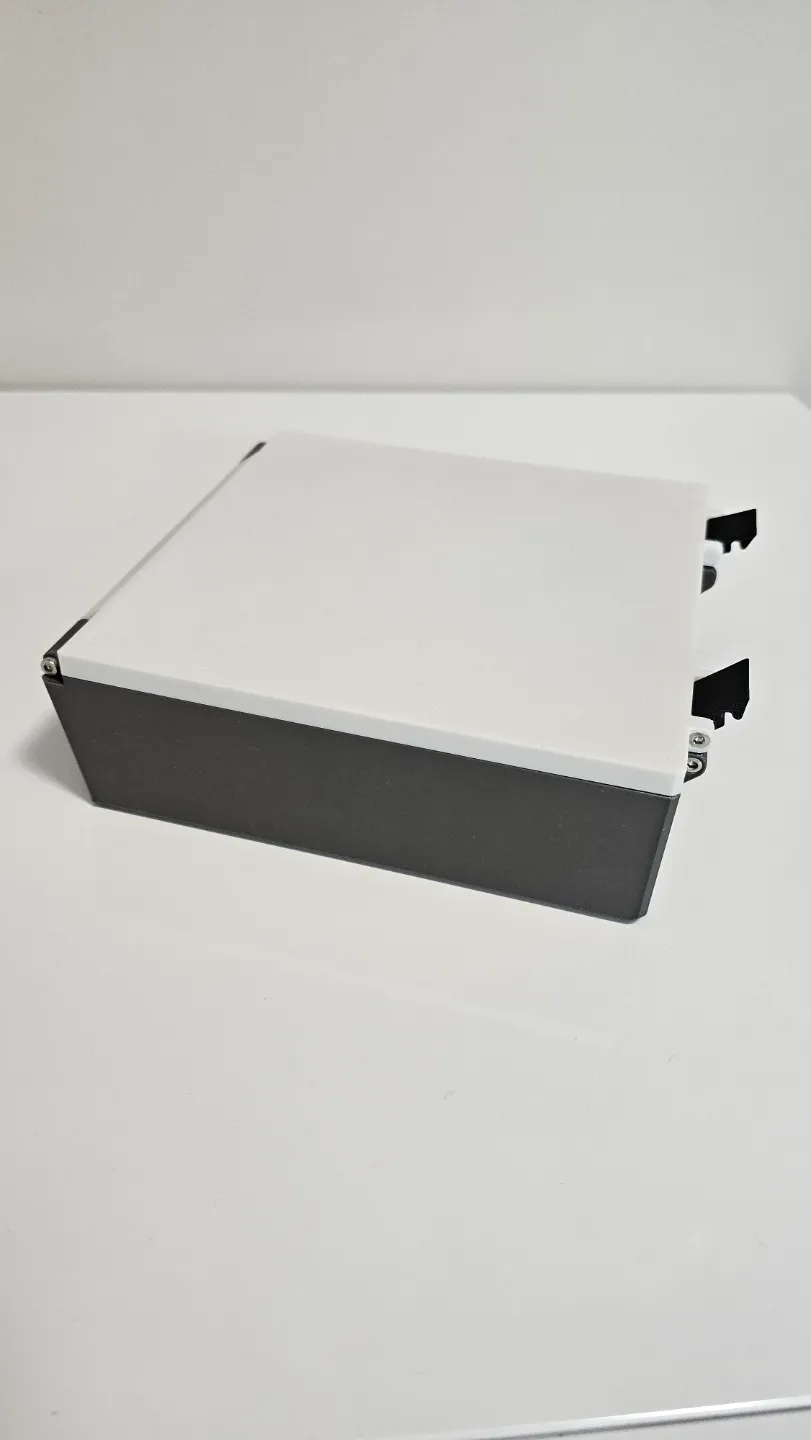

Storage boxes, compatible with gridfinity 2x3 3x3 3x4 4x4, height inside 55mm.

The 4x4 box does not fit on the A1 Mini

To assemble the boxes, you need M3x25 screws, with dimensions like those from the bambu store.

Closing clips are better printed in PET-G, but PLA is also OK, or they may hold less well after a longer period of use. There is no need to print clips with a higher infill, they are harder to fit then, the standard 15% infill is ok.

Box inserts:

GoPro:

https://makerworld.com/en/models/1054158#profileId-1041378

Battery organizer:

https://makerworld.com/en/models/1086130#profileId-1078957

storage

box

Gridfinity

Bill of Materials

Maker’s Supply Kits and Parts

M3x25 SHCS Machine Screw (5PCS) - AA041

B-AA041

1.06 USD

× 1

Buy Now

Download BOM
