Description

Boost me if you like my design! I truly appreciate your support!

Boost Me (for free)

If my help has been valuable, I’d really appreciate a boost. Thank you! 😊

Upgraded Dust Collector – A Brand-New Experience!

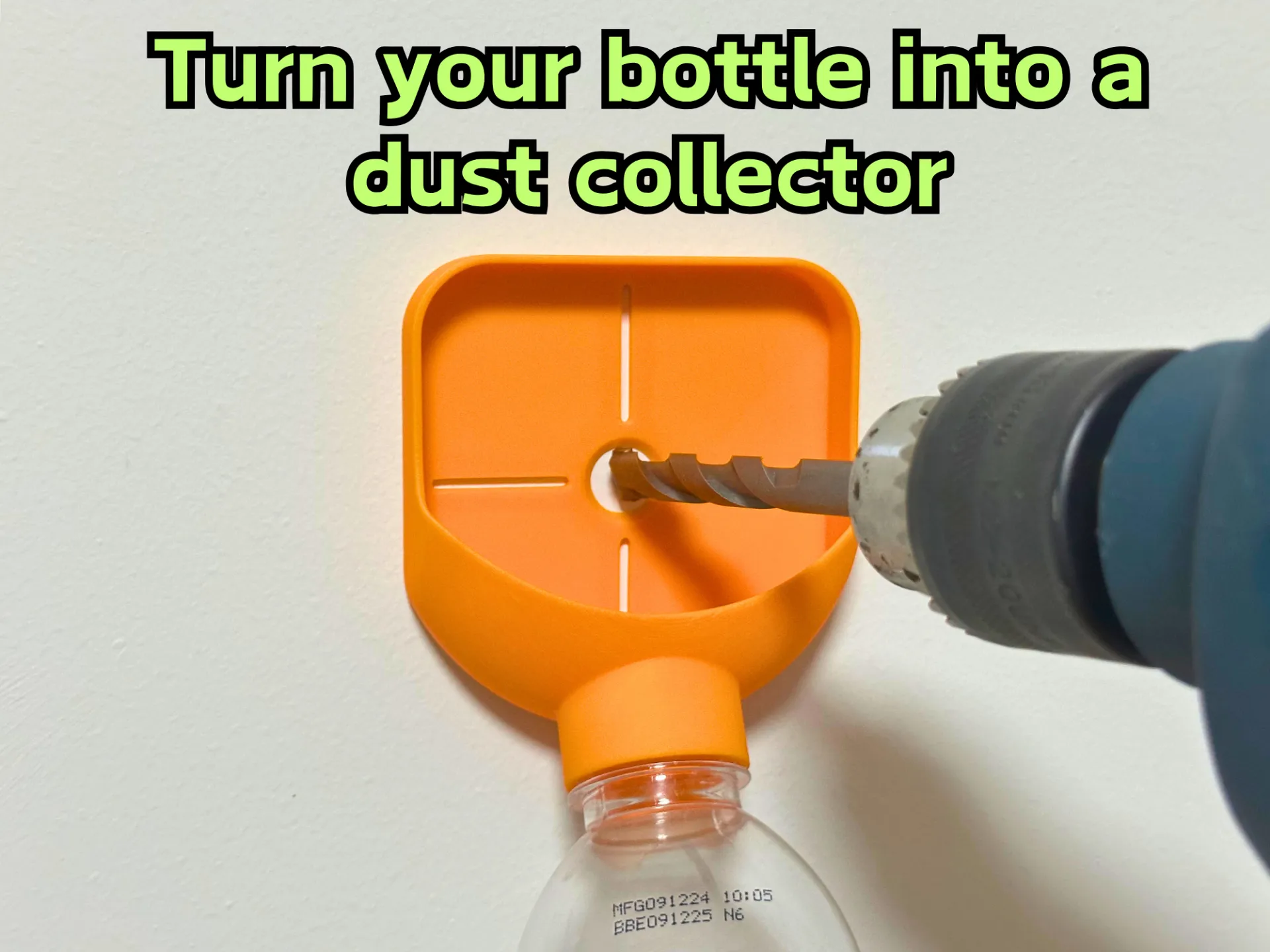

This innovative dust collector is designed to optimize your drilling work. The model natively supports 27-28mm mineral water bottle mouths and includes an adapter, making it compatible with Coca-Cola, Sprite, and other standard beverage bottles. Unlike traditional dust collectors, this model allows you to attach a water bottle, instantly transforming it into a high-capacity dust collection chamber, reducing the hassle of frequent dust disposal so you can stay focused on your work. Before use, please check your bottle size to ensure the best fit!

New Upgraded Features:

Added Dust Shield – Enhances dust collection efficiency and reduces dust dispersion.
New Bottle Adapter: This adapter is Compatible with standard bottle mouths, such as Coca-Cola and Sprite bottles, for greater versatility.
Included Plug Cap – If you don’t want to attach a bottle, you can use the plug to seal the opening, providing more flexibility.
Additional Bottle File – If you don’t have a suitable bottle, you can print my third file – Bottle, and use it directly!

And also don't forget to check out other projects you might like

Drill bit dust collection

drill dust catcher

drill dust extractor

drill dust removal

drilling dust collector

dust extraction tool

dust free drilling

DIY dust collector plaintext copy edit

Drill dust collector

Drill bit dust collection

Drill dust shield

Dust removal drilling

Dust-removing drill bit

bottle

Comment & Rating (50)

@user_2409641905

Print Profile

Drill Dust Collector - 0.16mm layer, 2 walls, 15% infill

Great print. Screw fits well. Thank you!

@yujixun

Thank you.

@stefo73bg

Print Profile

Coca-Cola & Sprite Bottle Adapter

thanks

@yujixun

Thank you.

@karypao

Print Profile

Drill Dust Collector - 0.16mm layer, 2 walls, 15% infill

Flawless

Show original

@yujixun

Thank you.

@user_2915931666

Print Profile

Coca-Cola & Sprite Bottle Adapter

prints nicely, and is useful for it's designed purpose.

@Biggworm

I like your idea, but can you make one with a 3/4 inch hole? Thanks

The designer has replied

@yujixun

That's possible. What kind of bottle does it fit? Can you send me some pictures? I want to find a physical bottle for testing and matching.

@Biggworm

Hi. Sorry I wasn't very clear the first comment. I was referring to the hole that you drill through on the back of the device.The threaded hole is fine.

@Bubamar0

Print Profile

Drill Dust Collector - 0.16mm layer, 2 walls, 15% infill

Slay, didnt tried it yet but seems cool !

@yujixun

Thank you.

@DangerousDave

Boosted

Print Profile

Coca-Cola & Sprite Bottle Adapter

very nice. prints beautifully

@yujixun

Thank you for your boost.

@DangerousDave

Boosted

Replying to @yujixun :

of course. good model. deserves it :)

@user_2167729149

Print Profile

Drill Dust Collector - 0.16mm layer, 2 walls, 15% infill

very useful design for DIY work around the house

@yujixun

Thank you.

@user_3569061993

Boosted

The solution to a precision and cleanliness problem, simply brilliant!!

The designer has replied

@yujixun

Thank you.

@mz_woodwork

Boosted

Nice Modell, incl. Adapter for Coke-Bottle Makes drilling Holes, with no mess on the floor, much easier. Thanks for your work

The designer has replied

@yujixun

Thank you for your boost.
