Pliers with suction cups tool for removing LCD by DrejkCZ

DrejkCZ

Tools>Hand Tools

GIF

Print Profile(2)

All

A1 mini

P1S

P1P

X1 Carbon

X1E

AMS 0.2mm layer, 4 walls, 30% infill

Designer

2 h

1 plate

No AMS 0.2mm layer, 4 walls, 30% infill

Designer

2.1 h

1 plate

Open in Bambu Studio

Boost

Released

Description

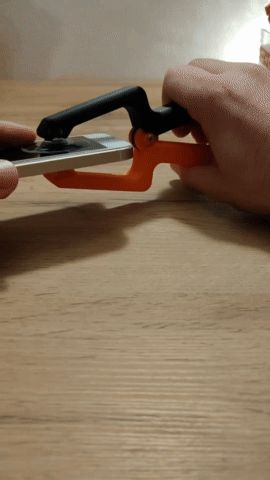

Used to separate/lift a display stuck to the phone housing. One suction cup is firmly on the display while the other is on the back of the phone, pressing the pliers will open and separate the display from the phone housing. Using pliers eliminates any need to pry the display out of the cover, which also greatly reduces the risk of cracking or damaging the display when disassembling the phone.

Printed with 0.4 nozzle
I used black and orange PLA
mushroom head 2x - 40mm (10PCS) - HA011
Screw 1x BT3-23 (for top mount latch) Here

Boost Me (for free)

Thank you for your support, I really appreciate it.

Check out my other designs on my profile.

Commercial License and Support:

If you are interested in selling physical copies of my designs in your local or online store, or just want to support my work, go to:

https://www.patreon.com/c/DrejkCZ

Bill of Materials

Maker’s Supply Kits and Parts

10PCS 40mm Suction Cap with Mushroom Head - HA011

B-HA011

1.89 USD

× 1

Buy Now

Download BOM

Comment & Rating (5)

@vetfin

Boosted

dont it break?

The designer has replied

@DrejkCZ

There is always a possibility of breakage, use at your own risk

Show original

@vetfin

Boosted

Replying to @DrejkCZ :

i am thinking about the plier itself. does it handle the force when pushing or does it break before the screen gets lifted?

@DrejkCZ

Replying to @vetfin :

This has only been tested on a small iPhone SE and it didn't crack there For larger phones, you might want to print with more perimeters, but the tweezers are only for lifting the display so you can get under it with a pick that will remove the adhesive Check YouTube; there are plenty of tutorials
