Description

https://blog.naver.com/sweetclara23/223738410562

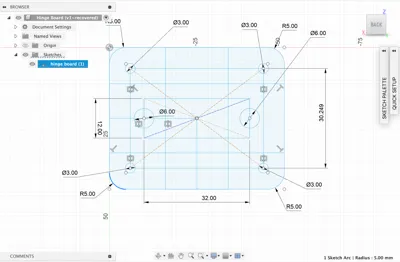

Closet Hinge Repair Board



This closet hinge repair board is a versatile and durable solution for fixing damaged or worn-out hinge mounting areas in wooden cabinets or closet doors. The repair board serves as a reinforcement plate, distributing the weight and stress of the hinge evenly, ensuring long-term stability.



You need to prepare 4 screw bolts.



Features:

  1. Easy Installation: Includes pre-drilled screw hole markers for quick and precise alignment.
  2. Customizable Design: Can be resized or adjusted in slicing software to fit various hinge dimensions.
  3. Print-Friendly: Optimized for FDM 3D printers with minimal supports needed; prints flat for convenience.

Printing Recommendations:

  • Material: PLA or PETG for moderate use; ABS
  • Layer Height: 0.2mm for smooth edges.

  • Infill: 40%+ for added strength.



This repair board is perfect for DIYers and homeowners looking for a cost-effective solution to extend the life of their closet doors without replacing the entire structure.

closet hinge repair

Comment & Rating (75)

(0/5000)
@DefinitelyAiden
Didn't hold up, I don't see how this would withstand the weight when only the screws are holding it in
The designer has replied
1
Reply
@SweetClara
Dear Definitely, I will make it thicker and more sturdy for you!
0
Reply
@SweetClara
I will make it thicker and more sturdy for you!
0
Reply
@SweetClara
Please download your version!
(Edited)
0
Reply
@ascarnato
Boosted
Hello, I have printed it, but I don't understand how to attach the hinge to the printed plate. I attach the plate to the furniture with the four screws, but the hinge remains in the position of the previous countersunk holes!?!? Thank you in advance if you can solve my small problem. Andrea
The designer has replied
Show original
0
Reply
@SweetClara
can you show me your picture please
0
Reply
@ascarnato
Boosted
Replying to @SweetClara :
Hello, thank you for your response, I don't understand how to attach the hinge to the printed plate. Thank you, Andrea
Show original
1
Reply
@SweetClara
Replying to @ascarnato :
Coloful!!!
0
Reply
@user_1404234436
Print Profile
0.2mm layer, 2 walls, 15% infill
Printed without issue
Show original
1
Reply
@SweetClara
wow ! you printed so many hinges! :))))))))
0
Reply
@SweetClara
Thanks Marios!
0
Reply
@user_3562310322
Print Profile
0.2mm layer, 2 walls, 15% infill
fixed my door been hanging off 3 years yay
1
Reply
@SweetClara
awesome!
0
Reply
@SweetClara
Thanks!!
0
Reply
@maxgourai
Print Profile
0.2mm layer, 2 walls, 15% infill
ottima
1
Reply
@SweetClara
Thanks momo!
0
Reply
@dommedruckt
Print Profile
0.2mm layer, 2 walls, 15% infill
Sufficient, but the print quality around the holes wasn't ideal, the cause remains unclear
Show original
1
Reply
@SweetClara
Hopefully, I would like to send you update version!
0
Reply
@katem71
Print Profile
0.2mm layer, 2 walls, 15% infill
I'm really impressed with the strength of these. Brilliant, practical design. Thank you so much.
0
Reply
@SweetClara
Thanks 😊 🫂 🙏
0
Reply
@3DFUNDESIGN
Print Profile
0.2mm layer, 2 walls, 15% infill
0
Reply
@SweetClara
Thanks 3DFunDesign!
0
Reply
@monkeylurv
Print Profile
0.2mm layer, 2 walls, 15% infill
I couldn't use as I forgot that my hinge recesses into the door. But otherwise is a great design. Maybe you might do a mod for the hinges that have the hole recess?
1
Reply
@SweetClara
Great idea! Hinge Party!!!
(Edited)
1
Reply
@monkeylurv
Replying to @SweetClara :
Now that I have looked more carefully at your photo I realise that this print is for the other end of my door hinge. In your photo the other end of the hinge recesses into the cabinet with a hole. This is the problem part for me. It would be great to have a complete solution - prints for both ends of the hinge. Thanks so much for this genius idea 👍🏻
1
Reply
@SweetClara
Thanks for the detailed feedback! That makes a lot of sense, and I realize how we can make it a more complete solution with communication. Appreciate your support and sweet comment. Keep in touch genius guy!
1
Reply
@user_3647775311
Not yet tested on my cabinet but the dimensions appear consistent
The designer has replied
Show original
1
Reply
@SweetClara
Thanks sweet comment
0
Reply
