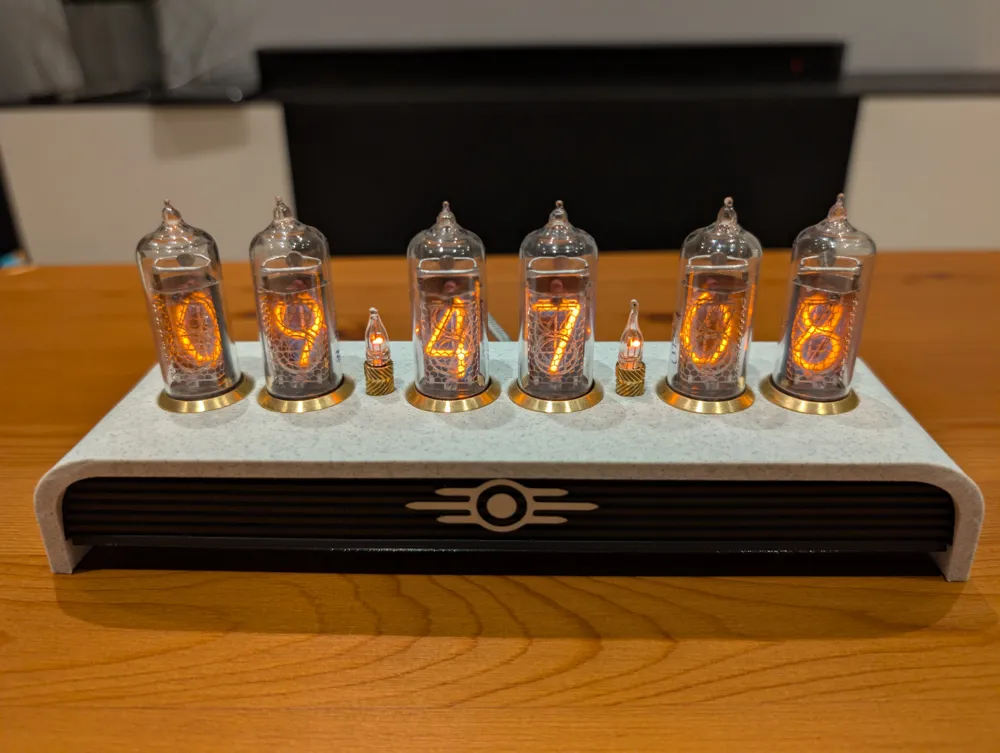

Fallout 4 inspired VAULT-TEC Nixie Tube Clock

Bring the retro-futuristic aesthetic of Fallout 4 into your home with this VAULT-TEC-themed Nixie Tube Clock. This 3D printable design is both functional and decorative, making it a perfect project for fans of the Fallout series or vintage electronics enthusiasts.

Designed to fit on Bambu Lab A1 mini bed.

Boost Me (for free)

Need a boost to your S.P.E.C.I.A.L.? Boosting this model won't actually improve your stats, but it will give me the Strength to keep creating cool stuff! Consider it a moral boost.

UPDATES:

2025-01-23: Raw model files now includes front and back panels with graphics removed for your customization.

Printing Instructions

Orientation:
- Use the orientation provided in the .stl files for optimal results. The body is designed to maintain a natural curve when printed in its default orientation.
Supports:
- Required for the slits and stand-offs in the body.
- Optional for the holes, depending on your printer's capabilities.
Fit and Tolerances:
- Decorative copper rings are press-fit but can be secured with a dab of super glue if necessary.
- Standoffs are also press-fit.
- Tight tolerances are used for the copper rings, which have an outer diameter of 23 mm.

Assembly Instructions

Prepare Components:
- Insert the Nixie tubes into their designated seats (Thingiverse model used).
- Solder the Nixie tubes but leave the indicator neons unsoldered at this stage.
Assemble Body:
- Attach the back panel to the non-slanted side of the body. Slide in the first corner, then bend to fit another.
- Press-fit or glue the copper rings and inserts into place.
Install Electronics:
- Carefully slide the circuit board into position, ensuring the tubes align properly.
- Insert and isolate wires for the neons before soldering them. Keep the front panel off for easier access during this step.
Finalize Assembly:
- Attach the front panel once all wiring is complete.
- Secure the bottom lid using screws. Take note of the FRONT indication.

Notes

If your neon indicators do not come with pre-installed 220k Ohm resistors, you will need to solder one onto one of their leads before installation.

Parts List

Nixie Tube Control Board (USB): Available on AliExpress
IN-14 Nixie Tubes: Available on AliExpress
Indicator Neons: Available on AliExpress
220k Ohm Resistors: Available on AliExpress
Decorative Copper Rings: Available on AliExpress or AliExpress
M3 x 16 mm Screws: Available on AliExpress or Maker's Supply
M5 Heat-Set Inserts for Columns: Available from Ruthex

Filaments Used

Filalab PLA Marble
Filalab PLA White
Rosa3D PLA Starter Black

Enjoy building your very own VAULT-TEC Nixie Tube Clock and let it add a touch of post-apocalyptic charm to your space!
