I realize that some people think that these parts are so simple that they don't need to read the assembly instructions.
But I've seen many assembly mistakes, so you can't get a satisfactory result!
Please refer to my assembly instructions (pdf file) before assembling, to avoid assembly mistakes and think this is a failure!

May you all have fun with it, and not be disappointed!

--------------------------------------------------------------------------------------------

“Reminder to use pla+ filament for printing comb parts, matte, silk filament is not suitable for sound.”

To make sure you get a good printout, you can print the comb part first and then use the method in the video to test if it produces a bright sound.https://www.youtube.com/shorts/EXfQZVVLFPo

Because some people have already encountered this problem, I would like to remind you about it
(I mentioned it in the assembly instructions, and there are arrows on the base)

The handle of the music box must be turned counterclockwise

Turn clockwise, and you will directly break Comb's finger

Thanks for the idea from @A1isthefirst.
I can't convey the beauty of the original song in monotone, but the melody still sounds right!

If you're a Harry Potter fan, you'll be able to tell which song it is!

Please increase the amount of lubricant if you feel that it takes a lot of force to turn the handle.

For those of you who find the base support hard to remove, check out this short video
https://youtu.be/O8IppJFwH_U

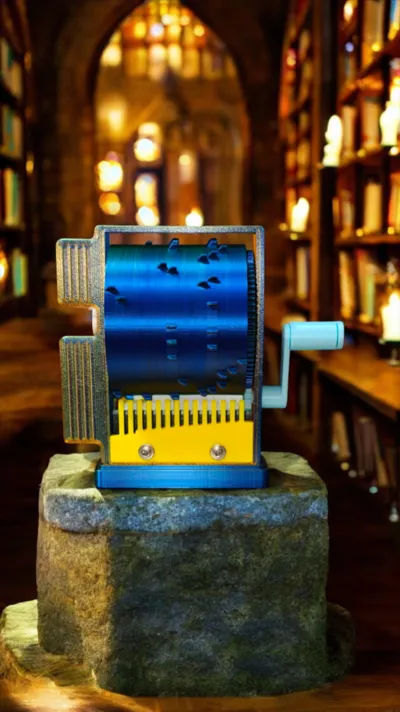

The correct assembly of the comb parts is shown in the photo.

In this version, in order to make the drum and base close together, the width of the base is 1cm smaller than the drum, so when you load the drum, you need to use a little bit of force to support the base as shown in the picture.

Lean the music box against an empty cardboard box, wooden box, wooden table, glass window, etc. where it can resonate and turn it slowly.

The stand files I've provided are just for standing the music box up, they don't necessarily need to be printed!
I made a video, but please understand that the sound presented in the video will be much smaller than the actual sound.
I hope you like it and have fun with it!
