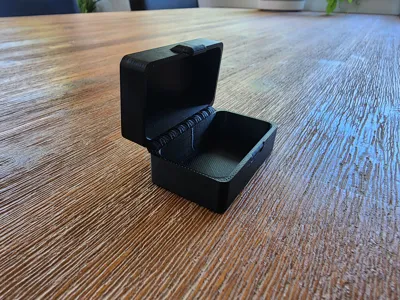

quick small print in place box 52x30 by Orion

Orion

Tools>Organizers

IP Report

Print Profile(3)

All

X1 Carbon

P1S

P1P

X1E

A1 mini

0.16mm layer, 2 walls, 15% infill

Designer

37 min

1 plate

4.7(62)

0.16mm layer, 2 walls, 15% infill

41 min

1 plate

4.9(10)

0.16mm layer, 2 walls, 15% infill

41 min

1 plate

4.5(2)

Open in Bambu Studio

Boost

364

859

786

537

Released

Description

Tolerance is pretty tight but i did not want the hinges loose and i wanted the lid to securely stay shut.

You will need to wiggle the lid back forth slowly until the hinges break loose.

The print takes about 36 minutes.

Comment & Rating (91)

@KrakenDesigns

Print Profile

0.16mm layer, 2 walls, 15% infill

Great little box, hinge is solid and clips closed very well.

@Orionsf5

im glad you had success printing it! I was worried the tolerance was going to be too tight. also that carbon fiber bed plate makes the box look nice!

@KrakenDesigns

Replying to @Orionsf5 :

I managed to print another 2 in white, they're all perfect, very easy first close and very solid for the size.

@Orionsf5

awesome! I like how quick they are to print too.

@sunshinecid

Boosted

Print Profile

0.16mm layer, 2 walls, 15% infill

Great model! Great profile! But FYI, if you print this with a .2mm nozzle, it won't work!

@Orionsf5

hmmm interesting. good to know! I don’t have a .2mm nozzle yet so not sure how well tolerance is with those

@sunshinecid

Boosted

Replying to @Orionsf5 :

It was the hinge, it seemed to fuse. Perfection on the .4 tho!

@tobiashmikkelse

Boosted

Print Profile

0.16mm layer, 2 walls, 15% infill

Prints fine, and works great after the initial hard breaking of the hinge

@Orionsf5

I’m glad it worked for you. yea the initial bending of the hinge is tough but it keeps the lid from having too much slop.

@user_2878715571

Print Profile

0.16mm layer, 2 walls, 15% infill

can’t snap together

@Orionsf5

hello. the model is print in place, the top and bottom cannot be printed separately or moved on the plate individually

@user_2878715571

Replying to @Orionsf5 :

I did neither of those things

@user_1723024465

Boosted

This is a very well-designed small box that latches close. The hinge as the designer said fits tight with no slop. The 1st box I printed, the hinge was very tight, like it will break but like the designer said, just carefully move it back and forth a little at a time and it will move. I liked it and printed a 2nd box but this time with a different brand of filament and it made a big difference, this time the hinge was not difficult to move at all and came out nice. So, if the hinge is hard to break free, you might want to try a different brand of filament and check your printer settings.
