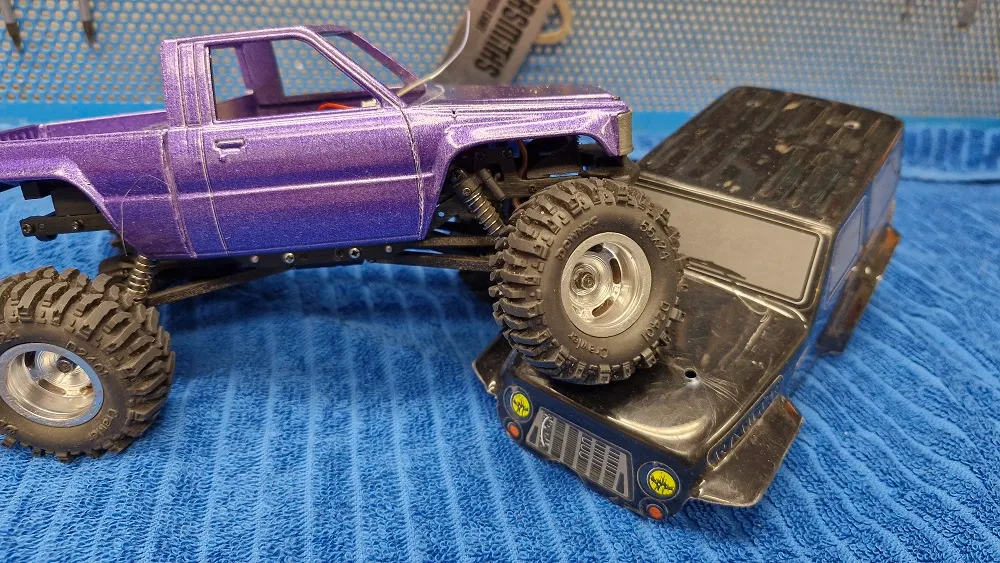

For my fourth version of a beadlock rim i wanted something a bit more simple in design.

So i ended up with this deep dish design.

16mm wide and an offset of -5mm.



You need 5pcs of 2x5mm selftapping screws per rim.



Take a look at my other 1.0 rims, mabye you will like some off my other designs as well.

And if you have other ideas for a rim, please contact me.

RC
crawler
124
124 crawler
scx24

Comment & Rating (15)

(0/5000)
@3DLucas
Boosted
Print Profile
0.16mm layer, 2 walls, 15% infill
Very cool wheels.
1
Reply
@Mecanical_fun
Thank you!
0
Reply
@1974.Charger
Print Profile
0.16mm layer, 2 walls, 15% infill
very nice print good print again
1
Reply
@Mecanical_fun
Thank you so much. I hope you enjoy them. I have more designs ideas and more rims are comming.
0
Reply
@MarianR24
Print Profile
0.16mm layer, 2 walls, 15% infill
Other Issues:Unfortunately, the beadlock ring is too large and does not fit the TRX4M tires
Show original
0
Reply
@Mecanical_fun
I have tried it with 3 different types of 1.0 aftermarker tires and they have all fitted without problem. Sorry to hear that it dint work for you. If i had a TRX4M tire i could have adjusted it for you, but unfortunate i dont.
0
Reply
@MarianR24
Replying to @Mecanical_fun :
Oh okay, all good
Show original
0
Reply
@MarianR24
What kind do you have
Show original
0
Reply
@user_3671095609
Boosted
Print Profile
0.16mm layer, 2 walls, 15% infill
love it! great print as always, solid work. best 3d printed wheel files out there.
1
Reply
@user_1979789451
Print Profile
0.16mm layer, 2 walls, 15% infill
1
Reply
@sirYoup
Boosted
Print Profile
0.16mm layer, 2 walls, 15% infill
1
Reply
@user_2412114011
Print Profile
0.16mm layer, 2 walls, 15% infill
1
Reply
