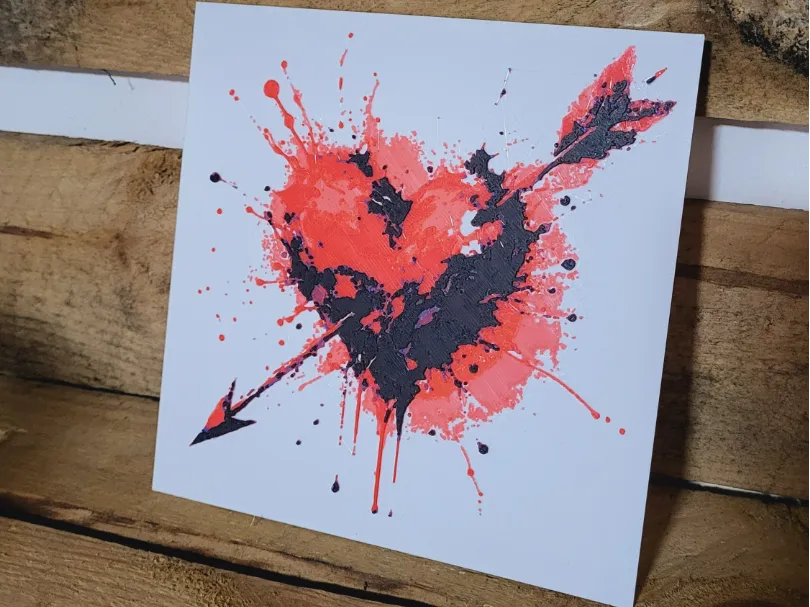

Hueforge Heart with Arrow
Hueforge Heart with Arrow
Print Profile(1)
Description
Only 4 colors are needed: White, Red, Blue and Black.

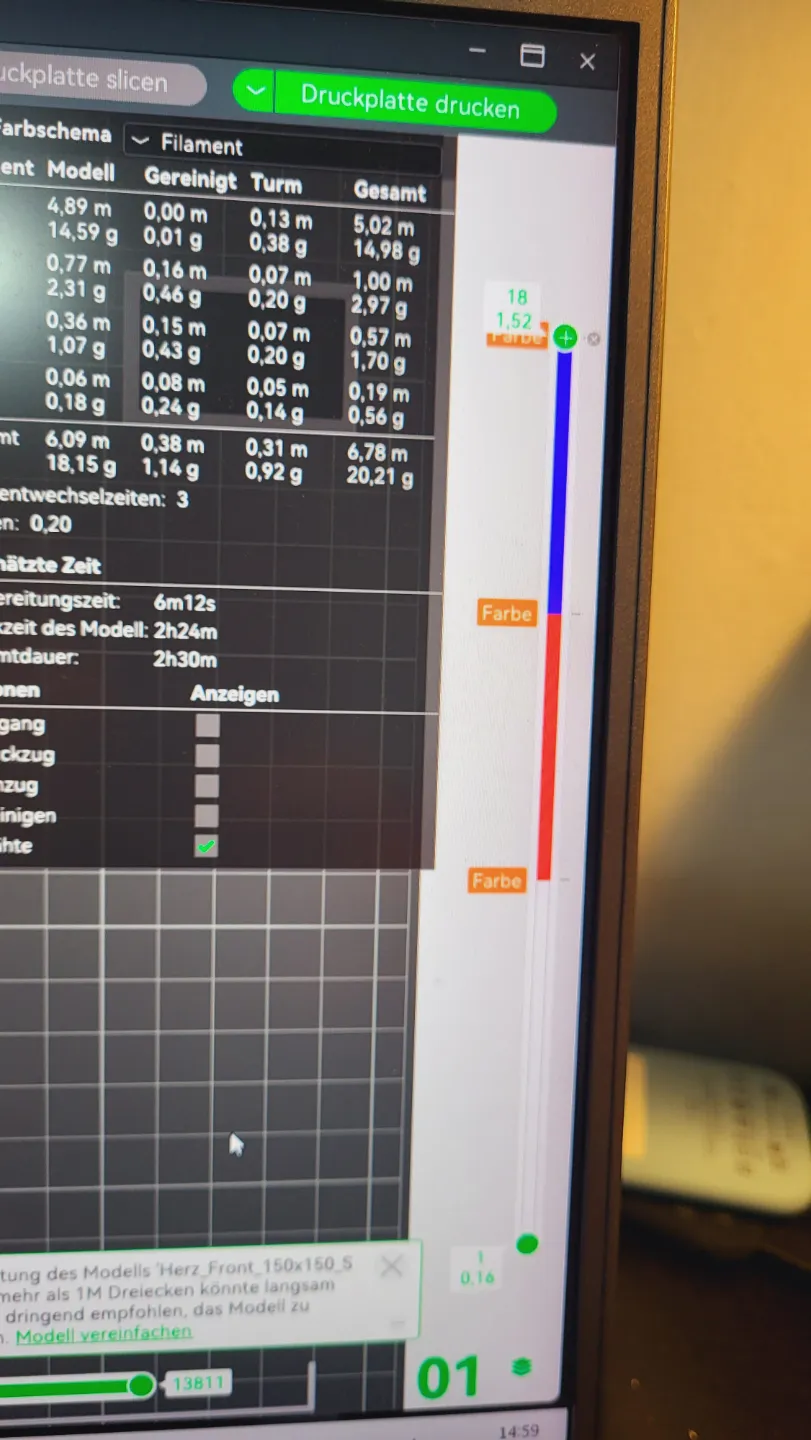

My print profile includes the pauses where you need to insert your filament.
The important setting is:
Project: Herz.hfp
Print at 100% infill with a layer height of 0.08mm with a base layer of 0.16mm
The Model is 150x150mm in size
You may print at higher layer heights below the Min Depth of 0.48mm
The Max Depth is 4.6mm and the Actual Depth is 1.5mm
Filaments Used:
PLA Kingroon White Transmission Distance: 4.7
PLA Kingroon Red Transmission Distance: 4.2
PLA Kingroon Blue Transmission Distance: 0.9
PLA Kingroon Black Transmission Distance: 0.2
This print uses 4 unique filaments
Swap Instructions:
Start with White
At layer #8 (0.72mm) swap to Red
At layer #13 (1.12mm) swap to Blue
At layer #18 (1.52mm) swap to Black for the rest.
