Description

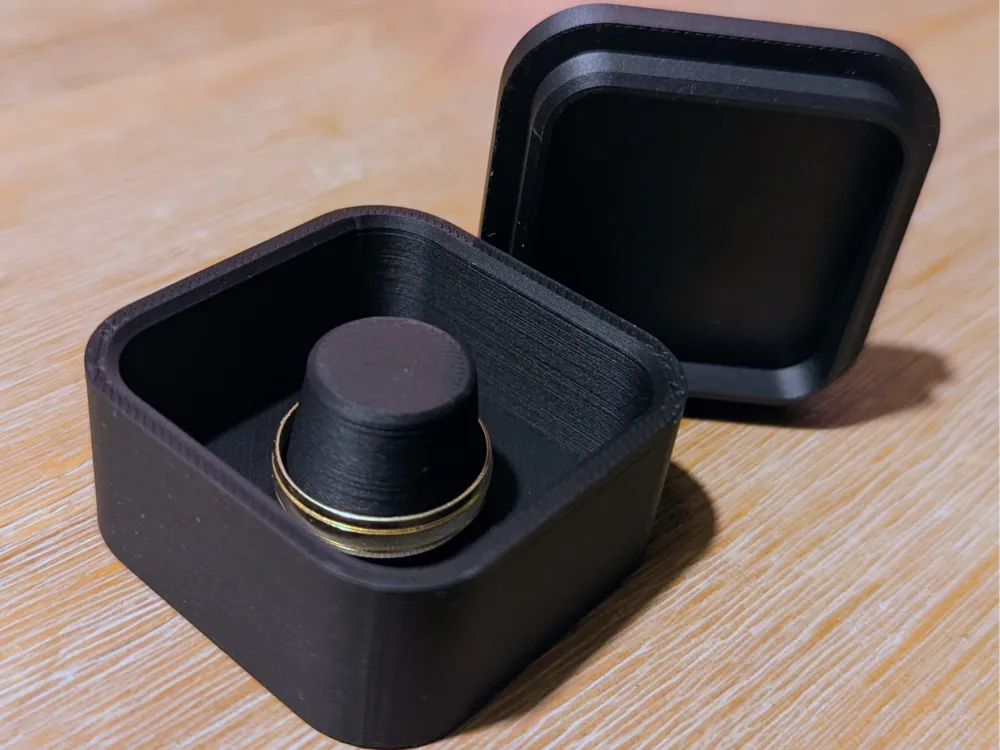

This stylish ring box has a conical holder and is therefore suitable for most rings. The box is closed with a magnetic closure. Two round magnets measuring 10 mm x 2 mm are required. These are inserted into the model during printing and are therefore installed invisibly. To make this possible, breaks were inserted in the print profile (for the lower part at layer 155 and for the upper part at layer 33). The parts are placed at the front edge of the print bed to make it easier to insert the magnets. The magnets should be glued in with superglue. The magnets must be glued in, especially when using a magnetic steel nozzle. Printing can then be continued and the magnets are simply printed over. Top and bottom parts are placed on separate printplates. Please make sure to place in the two magnets with the correct polarity, so that they attract each other and don't repel.



Bill of Materials

List other parts
  • Magnet x 2: 10mm*2mm

Download BOM
