Retro Arcade Pad: Classic Arcade Experience, Reimagined
Bring the nostalgia of classic arcade cabinets to your home with this custom-designed arcade pad! Perfect for retro-gaming enthusiasts and DIY makers, this project combines functionality, personalization, and timeless design.
Two Main Versions Available:
- Full Version:
- 8 buttons (30 mm diameter)
- 2 additional buttons (24 mm diameter) for secondary functions
- An arcade joystick
- Recalbox Version:
- 8 buttons (30 mm diameter)
- 3 additional buttons (24 mm diameter) for secondary functions
- An arcade joystick
- Simplified Version:
- 8 buttons (30 mm diameter)
- An arcade joystick
Two Unique Sub-Versions for Each Model:
- Standard Design: A clean and minimalist layout focusing purely on functionality.

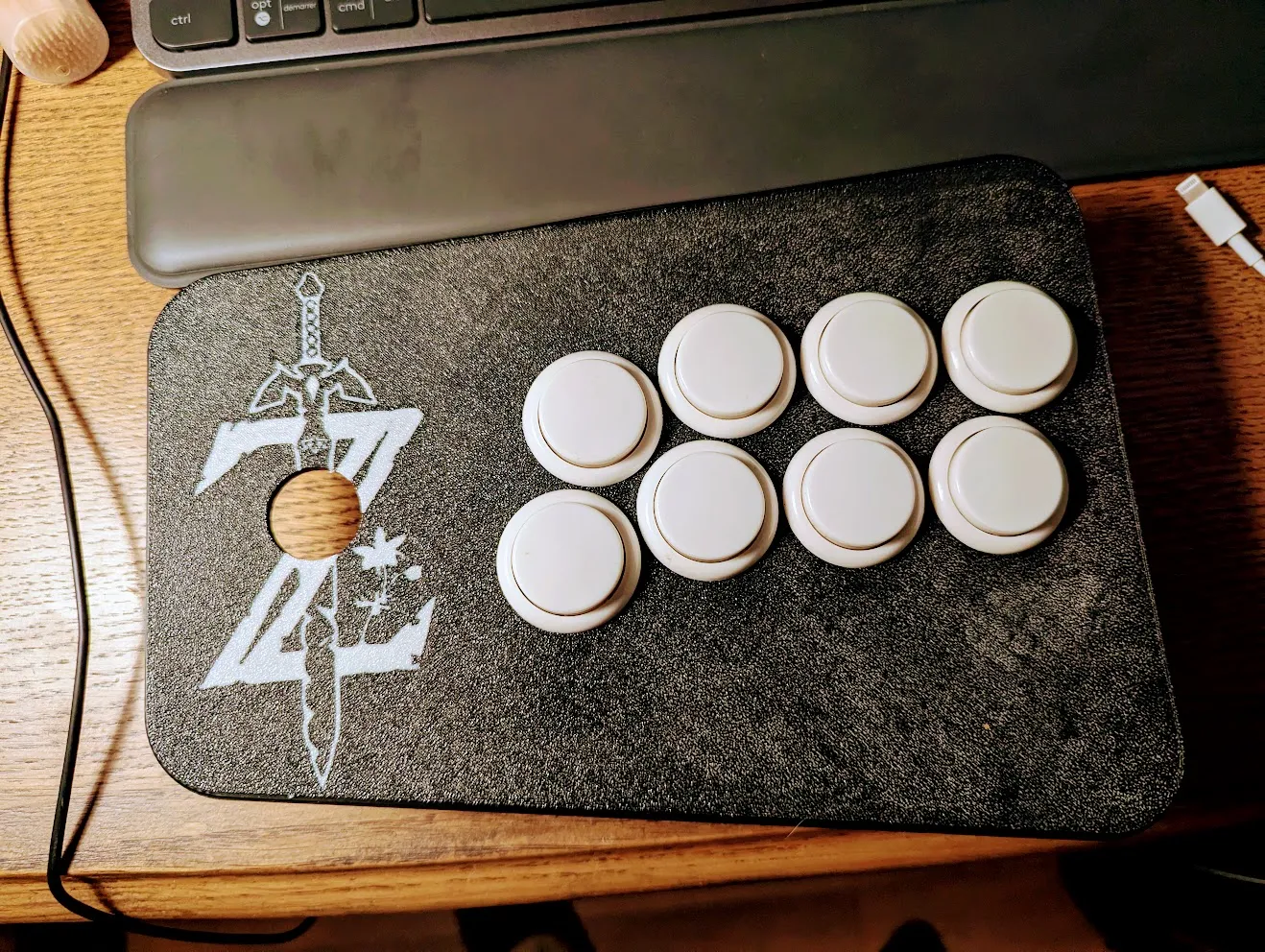

- Legend of Zelda-Inspired Design: Featuring a stunning engraving of Link's Master Sword for fans of the iconic series, blending functionality with a touch of fantasy.
Boost Me (for free)
If you’re a retro gaming fan or love unique, handmade projects, give this a boost! Your support helps bring this HeroStick to life and inspires future creations.
Who is this project for?
- Retro-gaming fans looking to recreate the arcade experience at home. (I'm using it with recalbox I don't test with other solution yet)
- Makers passionate about building and customizing their own gaming hardware.
- Zelda enthusiasts who want a touch of Hyrule in their gaming setup.
Instructions
Additional part needed
| Description | quantity | link |
| Screw for wood. Ø2 x L.10 mm to fix the electronic board | 4 | |
| Wood screws Ø4 x L.20 mm to fix the bottom of the case | 5 | |
| A compatible arcade kit | 1 | I bough mine in aliexpress (link here). |
Remark: If you have another kit you can check last part of the description to verify if your version is compatible. If not do not hesitate to contact me with precise measure and I'll be maybe able to help you.
How to assembled
screw the board with the small screws
Install the 8 big buttons
Position the joystick by aligning it with the four small guides. At this stage, it might not hold very securely, but don’t worry—if it’s properly aligned, it will stay firmly in place once the assembly is complete.
wired all the components (order for button is not important)
align the side piece (add and wire the small button if you select the version with 10 buttons)
Close the box with the 5 big screws
Now you can plug it thank to USB.
Map you arcade stick
Before to play you have to map button and stick. Here is a proposition I'm using with recalboc
Additional technical info
Big button: Ø30mm
Small button: Ø24mm
Board: 85mm x 35mm Space between hole to fix 30mm and 80 mm
Stick:
fixation plate 53mm x 95 mm
regarding space and size of the guide here is a blueprint
Boost Me (for free)
Boost this project to show your love for classic arcade gaming and heroic designs like the Zelda-inspired edition. Every boost fuels the passion behind this creation!
Rediscover the magic of arcade gaming and add a legendary twist with the Zelda-themed design!
If you want more you can find more of my Zelda creations here → https://makerworld.com/en/collections/3661492 and more video game creation here → https://makerworld.com/en/collections/4506238
