Have this knife in your tool box!   Branched from Over-engineered OTF into utility blade version.

Print profile default for Trapezoid.  18mm holder kit as a separate profile.

Or just print the dummy profile if you are not using it for utility blade.



Lots of patterns. Fully 3D printed except steel blade. Upgradeable, such as metal spring upgrade kit.

(This is a over-engineered model. Please always print using a print profile and DO NOT try to slice it yourself!)

Boost Me (for free)

After boosted, message me to get the handle with cutout windows!

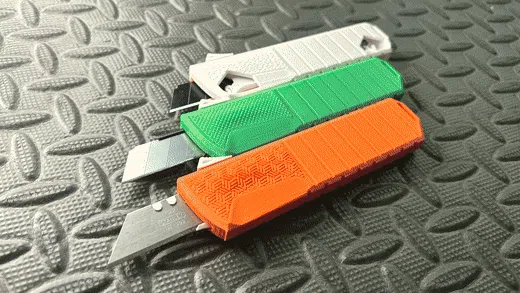

Here you go some variants  Pro Utility Blade Holder, Xacto, 9mm Mini Pro, 9mm Nano, 18mm, trapezoid. Or check my model list. :P

OTF Pro Mini 9mm snap-off blade.

OTF Pro 18mm snap-off blade or Trapezoid.

OTF Original



OTF NANO 9mm snap-off blade or x-acto no11.





You can find these OTF variations in my model list. :P

EDC KUT version

This accurate model requires printing using the most reliable filament and printer settings. Good as a benchmark testing your machine and filament setup. If you are confident in your settings, you may want to try changing the filament. But you can also try the spring kit profile. This will, to some extent, force the overturning of certain errors. Please let me know the results. Good luck.



The main problem is warping: The front cut out becomes smaller. The blade failed to catch the spring for ejection.

Filament issues: The push lever is difficult to move(a common problem with silky), or if the parts need to sanded, this means you need to try a different filament colors/types.

Installation issues:  The latch lever is oriented in a "V" shape, not an "A" shape. Pull the blade all the way out (reference time 1:06 in the video) and the latch lever will prevent it from returning. Now you can install the top cover.

Trapezoid based on these brands (Stanley/Hart/DeWALT/Husky/Toughbuilt). Some brands need the smaller dowel blade holder (different print profile)

(Don't blame a model or print profile by giving a low rating. It won't help you to be successful with your next print at all!)



Based on the review feedback, you'll definitely want to print more than one to show off. So consider using monochrome printing and then mixing the parts. Save both times and materials.

****No hardware required.  But if you want to use metal spring, here you go the upgrade kit using BA001, BA002

****Based on my experience, not all PLA filaments are suitable for precision printing.

**** Profile well testing using PETG-HF and PLA Basic, Sparkle and Marble. Strongly suggest PETG-HF, especially for the spring. And the PLA Silk Dual Color is not good for this precision print.
****If mixing filament types (e.g. PETG with PLA) for multiple colors, it is best to disable flow calibration.





More pattern and print profile to be updated.

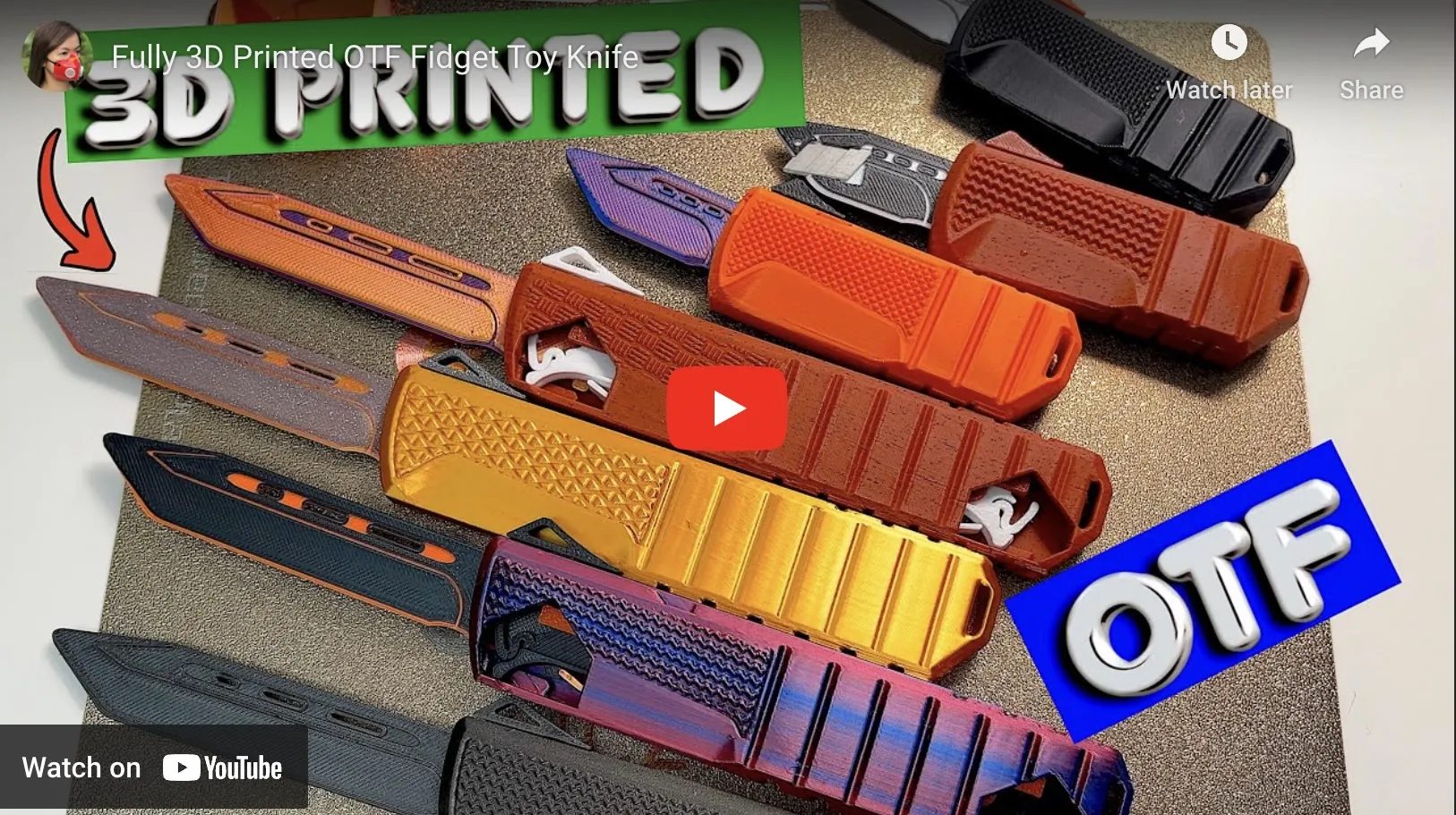

This one shares the same Build video link of the full-size version.



Or using optional metal spring upgrade kit.









Comb kit available here

blade
utility blade
utility
utility knife
holder
whistle
loud whistle
Fidget
fidget
gadget
tools
double action
trapezoid
trapezoid blade
opener
boxopener
box opener
openbox
over engineered
over-engineered
18mm
folding
folding blade
razer
pocket
overengineered
package
package opener
tool
Tool
tool accesory
tool accessories
tool accessory
toolbox
stanley blade
stanley
dewalt
Husky
husky
craftsman
hart
hart tools
EDC
edc
cut
cutter
scraper
serrated
serrated blade
Holder
